Cable Trays

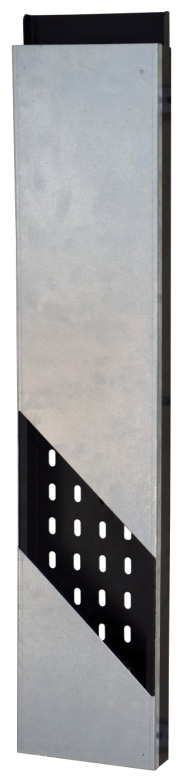

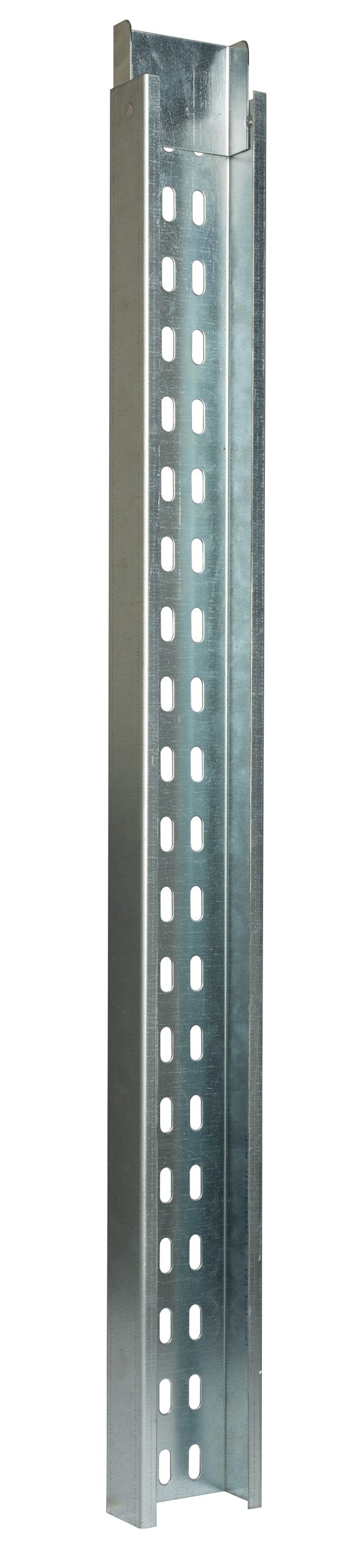

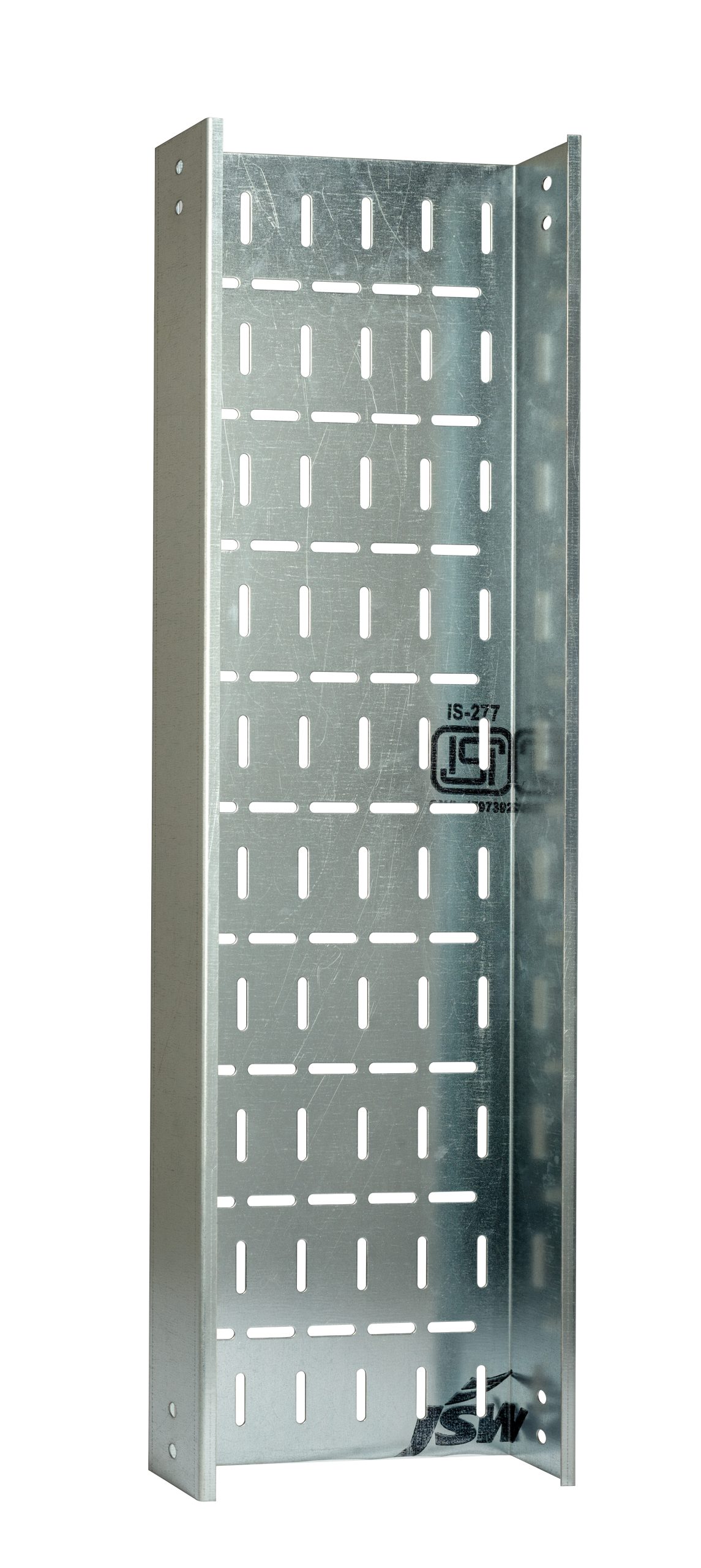

Perforated Type Cable Trays

Finishing : PreGalvanized, HotDipGalvanized, Powder Coated, Stainless Steel
Features : Moderated Ventilation with provision for cable support
Thickness(T): 1.2mm, 1.5mm, 2.0mm and 2.5mm
Width Range: 50mm to 1000mm
Height Range: 40mm to 100mm
Standard Length of 2500 mm (other sizes are available on request)
Pre Galvanized with 120 GSM Sheet Steel
Other Coating thickness will be provided as per requirement

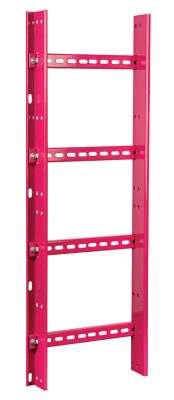

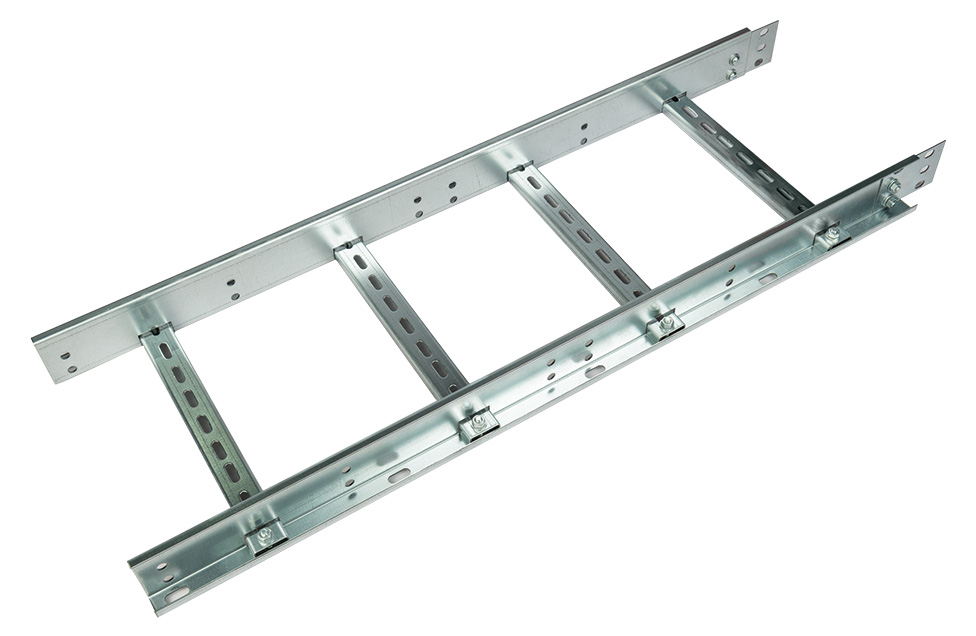

Bolted Type Ladder Cable Trays

Finishing: Pre Galvanized, Hot Dip Galvanized, Powder Coated
Features: Standard Length 2500mm (other sizes are available on
request)
Thickness(T): 1.5mm, 2.0mm and 2.5mm
Width Range: 150mm to 1200mm
Height Range: 50mm to 100mm
Runs at every 250mm interval
Zinc Plated Fasteners: M8 x 30 – 10 Nos. / Tray

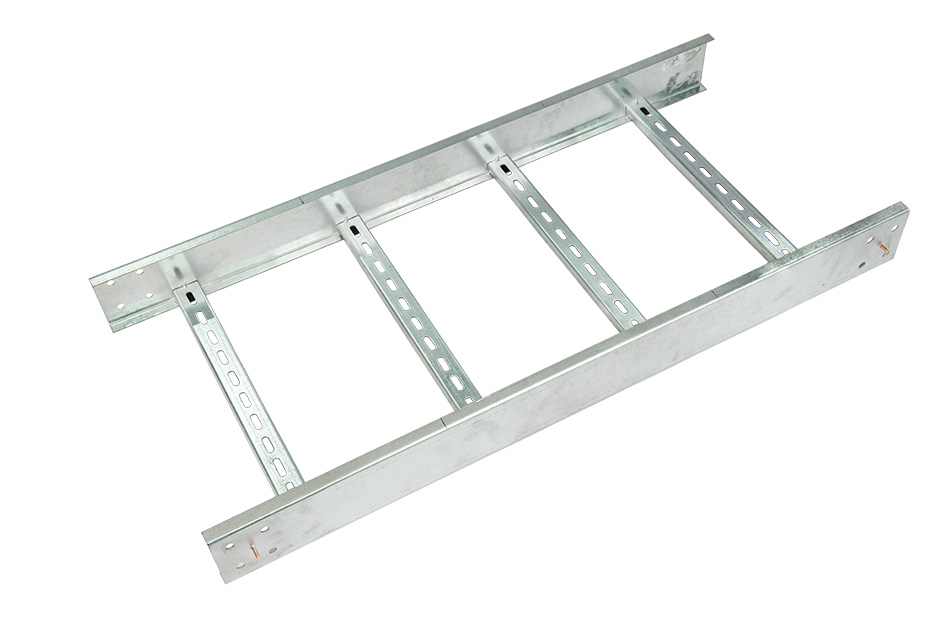

Welded Type Ladder Cable Trays

Finishing: Pre Galvanized, HotDipGalvanized, Powder Coated
Features: Standard Length 2500mm (other sizes are available on request)
Thickness(T): 1.5mm, 2.0mm and 2.5mm
Width Range: 150mm to 1200mm
Height Range: 50mm to 100mm • Runs at every 250mm interval
Coupler Plate with 2 Nos. / Tray
Zinc Plated Fasteners: M8 x 30 – 10 Nos. / Tray

ACCESSORIES - BOLTED TYPE 45o LADDER BENDS

Ladder - Horizontal Bend

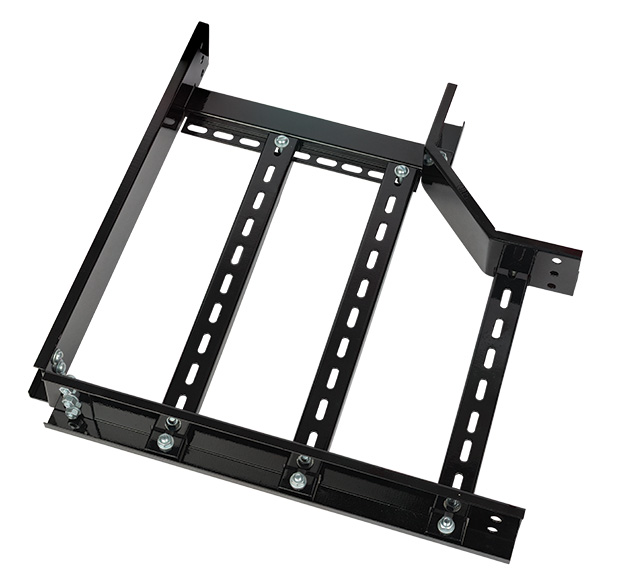

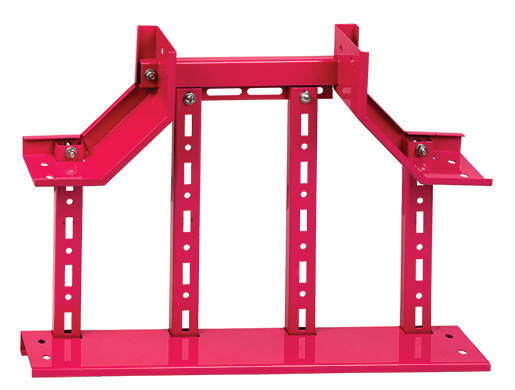

Ladder - Tee Bend

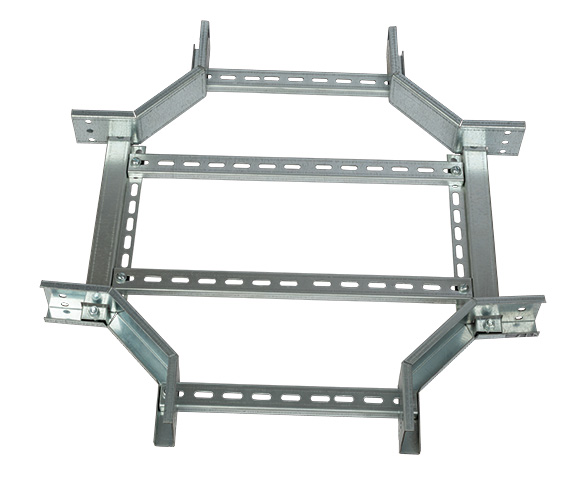

Ladder - Cross Bend

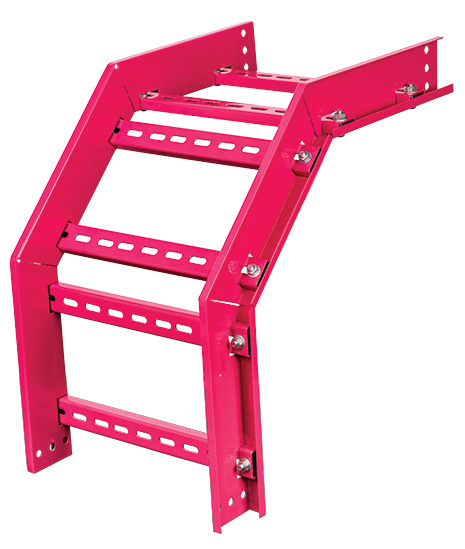

Outer Vertical Drop

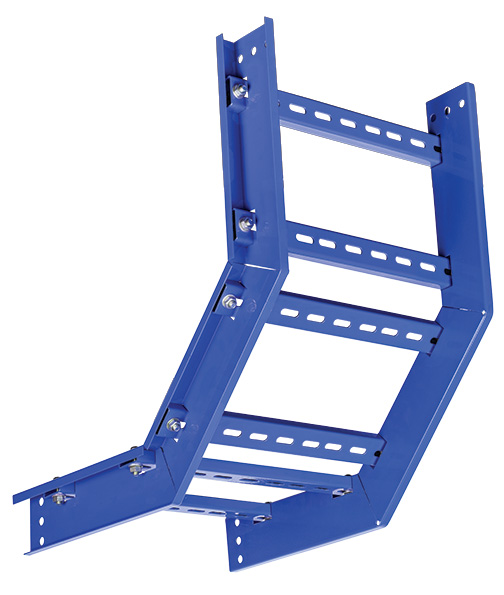

Inner Vertical Drop

Available sizes in Perforated Type Bends

Sl No.	Width (W)	Height (H)	1.6 mm	2.0 mm	2.5 mm
1	150	50	Yes	Yes	Yes
2	150	75	Yes	Yes	Yes
3	150	100	Yes	Yes	Yes
4	200	50	Yes	Yes	Yes
5	200	75	Yes	Yes	Yes
6	200	100	Yes	Yes	Yes
7	300	50	Yes	Yes	Yes
8	300	75	Yes	Yes	Yes
9	300	100	Yes	Yes	Yes
10	450	50	Yes	Yes	Yes
11	450	75	Yes	Yes	Yes
12	450	100	Yes	Yes	Yes
13	500	50	Yes	Yes	Yes
14	500	75	Yes	Yes	Yes
15	500	100	Yes	Yes	Yes
16	600	50	Yes	Yes	Yes
17	600	75	Yes	Yes	Yes
18	600	100	Yes	Yes	Yes
19	750	50	Yes	Yes	Yes
20	750	75	Yes	Yes	Yes
21	750	100	Yes	Yes	Yes
22	900	50	Yes	Yes	Yes
23	900	75	Yes	Yes	Yes
24	900	100	Yes	Yes	Yes
25	1000	50	Yes	Yes	Yes
26	1000	75	Yes	Yes	Yes
27	1000	100	Yes	Yes	Yes

ACCESSORIES - RADIUS WELDED TYPE LADDER BENDS

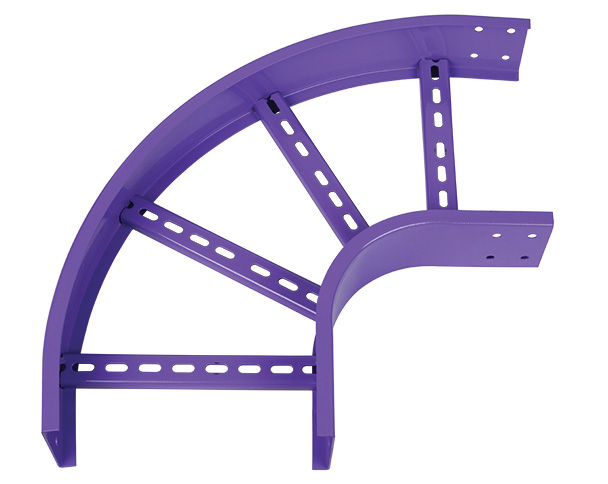

Welded Ladder - Horizontal Bend

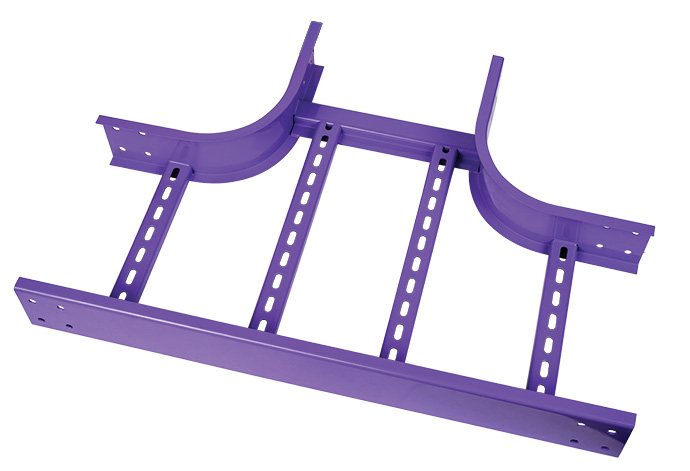

Welded Ladder - Tee Bend

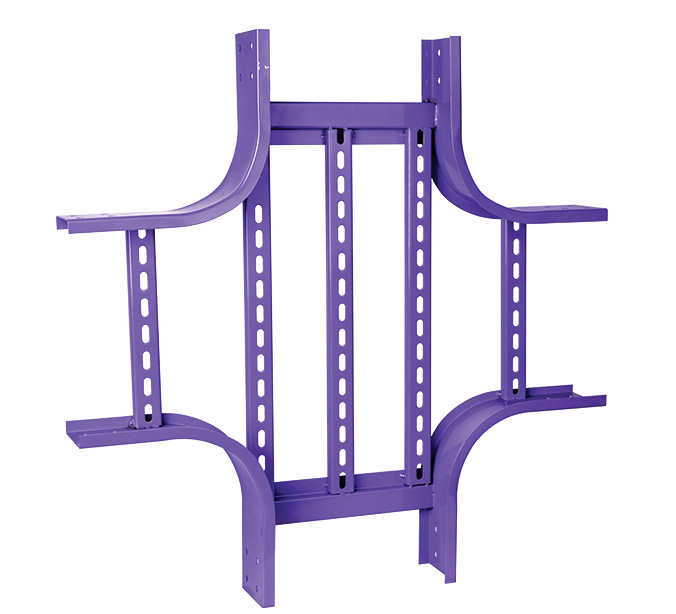

Welded Ladder - Cross Bend

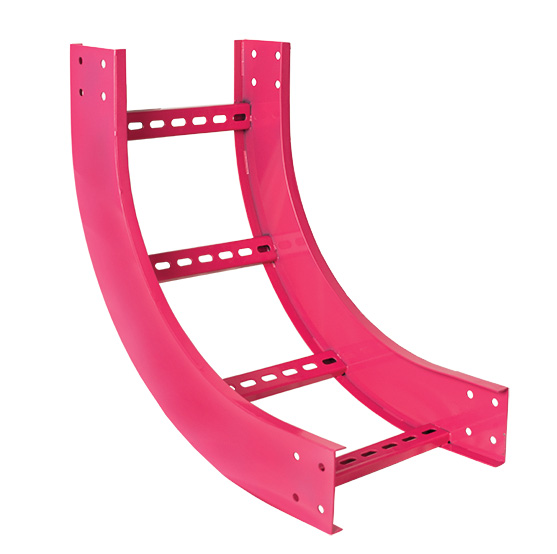

Welded Inner Vertical Drop

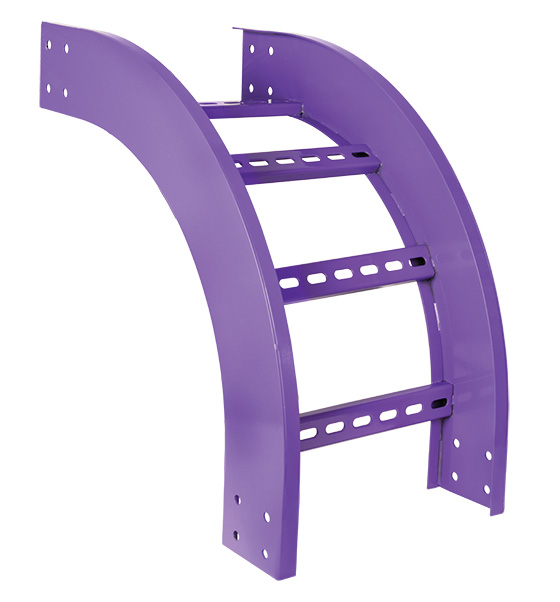

Welded Outer Vertical Drop

Sl No.	Width (W)	Height (H)	1.6 mm	2.0 mm	2.5 mm
1	150	50	Yes	Yes	Yes
2	150	75	Yes	Yes	Yes
3	150	100	Yes	Yes	Yes
4	200	50	Yes	Yes	Yes
5	200	75	Yes	Yes	Yes
6	200	100	Yes	Yes	Yes
7	300	50	Yes	Yes	Yes
8	300	75	Yes	Yes	Yes
9	300	100	Yes	Yes	Yes
10	450	50	Yes	Yes	Yes
11	450	75	Yes	Yes	Yes
12	450	100	Yes	Yes	Yes
13	500	50	Yes	Yes	Yes
14	500	75	Yes	Yes	Yes
15	500	100	Yes	Yes	Yes
16	600	50	Yes	Yes	Yes
17	600	75	Yes	Yes	Yes
18	600	100	Yes	Yes	Yes
19	750	50	Yes	Yes	Yes
20	750	75	Yes	Yes	Yes
21	750	100	Yes	Yes	Yes
22	900	50	Yes	Yes	Yes
23	900	75	Yes	Yes	Yes
24	900	100	Yes	Yes	Yes
25	1000	50	Yes	Yes	Yes
26	1000	75	Yes	Yes	Yes
27	1000	100	Yes	Yes	Yes
